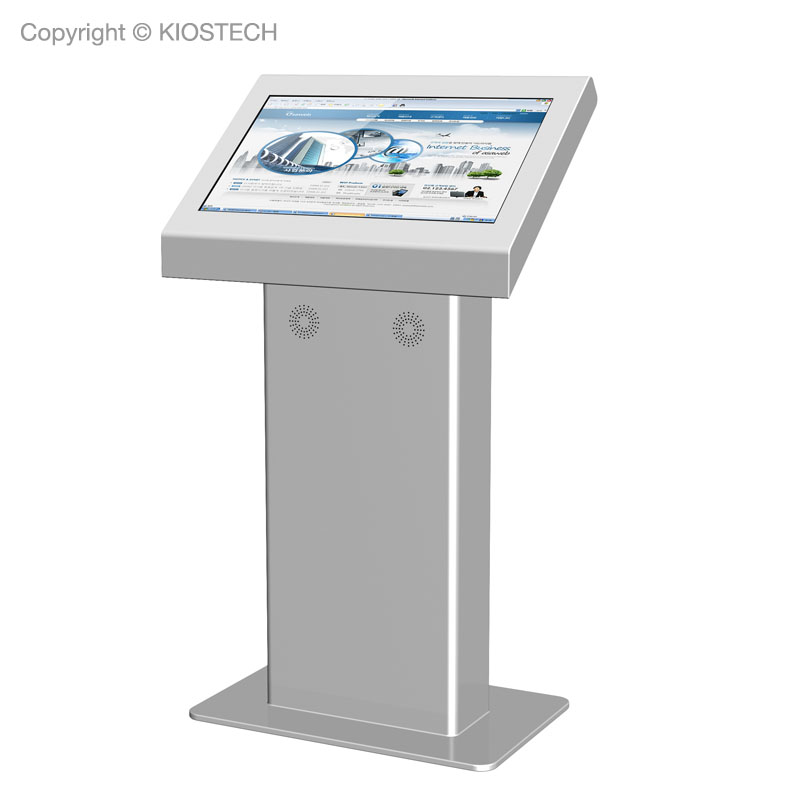

In horizontal screen design, the user is more accustomed to the way of operation.
This large screen digital signage outfit with a 32" to 46" display or multi-touch screen. An optional speaker system is available.
Large support column, the kiosk interior can accommodate an industrial or ordinary host.
Heavy solid steel plate, making the terminal more stable.
An excellent cooling system allows for better heat dissipation of the screen.
Model Number: KOS6503A
Support Sample Order: Yes
Support Custom Components: Yes
Brand Name: ODM / OEM / KIOSTECH
Certification: CE, FCC
Delivery Time: 6 Weeks
Overall Height × Width × Depth: 1220mm×780mm×420mm
Screen Size: 32' or 42'
Base: Width × Depth × Height: 700mm×420mm×10mm
Brightness: 450 cd/m2(Indoor Use) or 1000 cd/m2(Outdoor Use)
Net Weight: 80 kgs
Panel Type: LED
Material Metal: Steel
Resolution:1920x1080 (1080p)
Placement Style: Floor Standing
Contrast Ratio: 1200:1
Orientation: Horizontal
Aspect Ratio: 16:9 Widescreen
Features: Aluminium frame & Slim
Screen: HD Tempered Glass
Color: Black or others
Supported Photo Files: JPEG, PNG, BMP, GIF
Supported Video Files: MP4, AVI, RMVB, RM, MOV, MPEG1/2/4, H.264, XVid, DivX, MKV, etc.
Supported Audio Files: MP3, WMA, AAC, AC3, FLAC, APE, WAV, etc.
Secondary Color: Silver or others
Content Management System: Option
Featuring WiFi: Option
Touch Screen: Yes
Bluetooth Abilities: Option
Panel Technology: 10pt IR Touchscreen
Package Dimensions: 1700mm×560mm×400mm
Refresh Rate: 60Hz
Package Weight: 90 kgs
Speaker: 5W Dual Speaker
Ethernet LAN(RJ45): One
Power Consumption: 200W
Packaging Details: Film wrap, foam and Plywood box
Product Input voltage: AC 90V~264V
Warranty: 1 year
Operating System: Windows 10 Pro
USB 2.0: One
Wheels under the Signage: No
This digital signage kiosk is often placed in shopping malls, museums, libraries, etc. to display information on a large screen or to interact with a touch screen.
This horizontal screen interactive kiosk is quite useful when customers need to access information fast. Like mall maps, navigation, store or product information, museum or exhibit information, or book locations.
The large, heavy bottom and the robustness of the machine prevent children from playing with the terminal, making safety a top priority.
It is equipped with an internal surge protection power board, a Venting fan for the cabinet, Grounds for all doors and systems.
Excellent TFT LCD or LED, LG brand, 48 hours safety, and reliability test before shipment. Heat dissipation test before shipment, infrared touch screen function test, host aging test, current stability test, CE, FCC, UL certification, to make this machine full-qualified.
